A DIVISION OF PACIFIC INTERNATIONAL INC

MARSHALL ISLANDS TOWING & SALVAGE COMPANY

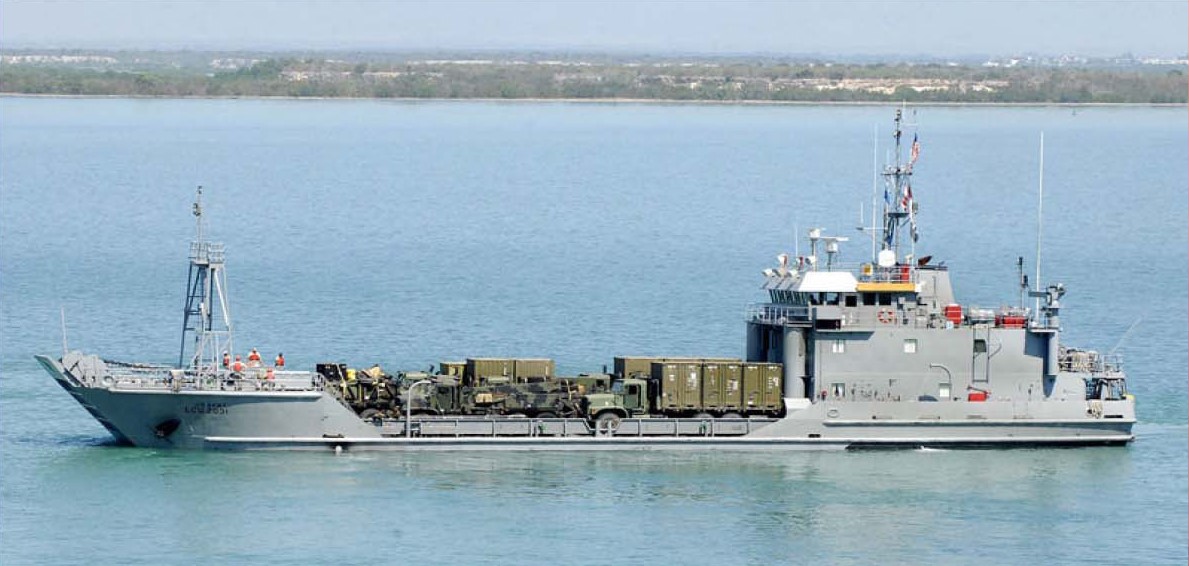

LCU 2000 SERIES

LANDING CRAFT UTILITY

LCU-2014
COAMO

Range | Speed
Light 10,000 Nm @ 12 kn
Loaded 6,500 Nm @ 10 kn

Draft
Light 6 feet
Loaded 8.85 feet

Dimensions
Length 174 feet
Beam 42 feet

Cargo Deck
Square Footage 3,800
Capacity 350 Short Tons
Containers 24 Double-stacked 20 feet

Propulsion Plant
Cummins KTA-50 Main Engines @ 1250 BHP (x2)
Cummins NT855 Diesel Driven Bow Thrusters @ 300 HP

MT RALIK II
MT RATAK II

Home port: Kramer Dock, Majuro MH

The identical tugs are 344 grt, single screw, 2000 hp
LOA: 109 ft
Breadth: 31 ft
Max Draft: 12 ft
Speed: 9 kn
Bollard Pull: 36 t
MT RALIK II Call Sign: V7YT
MT RATAK II Call Sign: V7YB

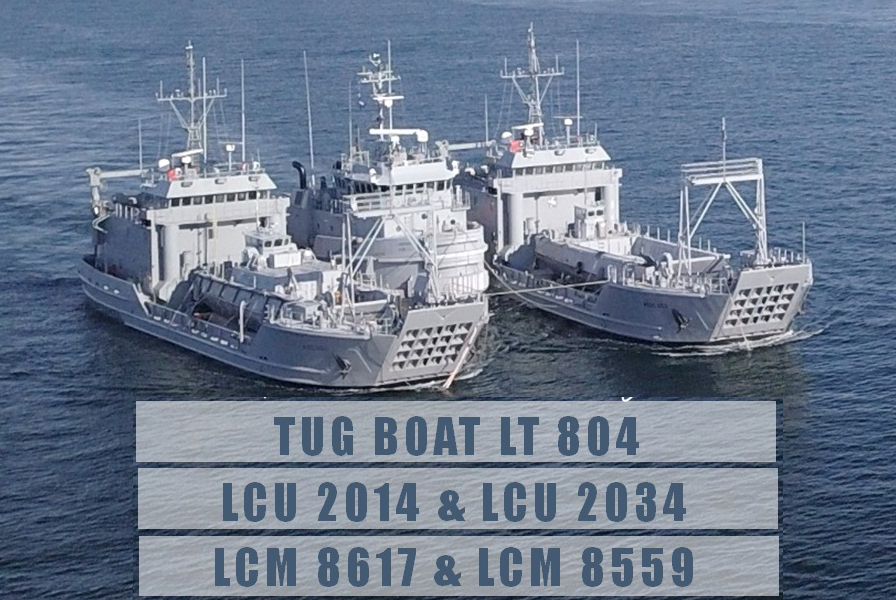

LARGE TUG
LT-804

Home port: Kramer Dock, Majuro MH

Range/Speed:
Light 5,000 NM @ 13 knots
w/ Tow 4,500 NM @ 8 knots

Draft:
Light 14.5 ft
Loaded 17 ft

Displacement:
105 Long Tons (light)

Dimensions:
Length 128 ft
Beam 36 ft

Towing Capacity:
58 Tons bollard pull
Almon Johnson Model 333 Tow Machines
(2ea)

Propulsion Plant:
EMD Main Engines rated @ 2550 HP (2ea)

Power Generation Systems:
CAT Service Diesel Generators 300kW (2ea)
CAT Emergency Diesel Generator 65kW (1ea)

A DIVISION OF PACIFIC INTERNATIONAL INC

MARSHALL ISLANDS TOWING & SALVAGE COMPANY

LCU 2000 SERIES LANDING CRAFT UTILITY LCU-2014COAMO

MT RALIK IIMT RATAK II

LARGE TUGLT-804
